Detalhes do produto:
|
| Nome do produto: | Moinho pulverizador de casca de Albizia | Produto acabado: | pó de casca |
|---|---|---|---|
| Aplicativo: | indústria alimentícia, química, médica | Capacidade: | 20-1800 kg/h |
| Finura: | 60-2500 malhas | Tamanho da alimentação: | < 15 mm |
| Material: | Aço Inoxidável 304/316 | Serviços Pós-Venda: | garantia de um ano; suporte de vídeo |

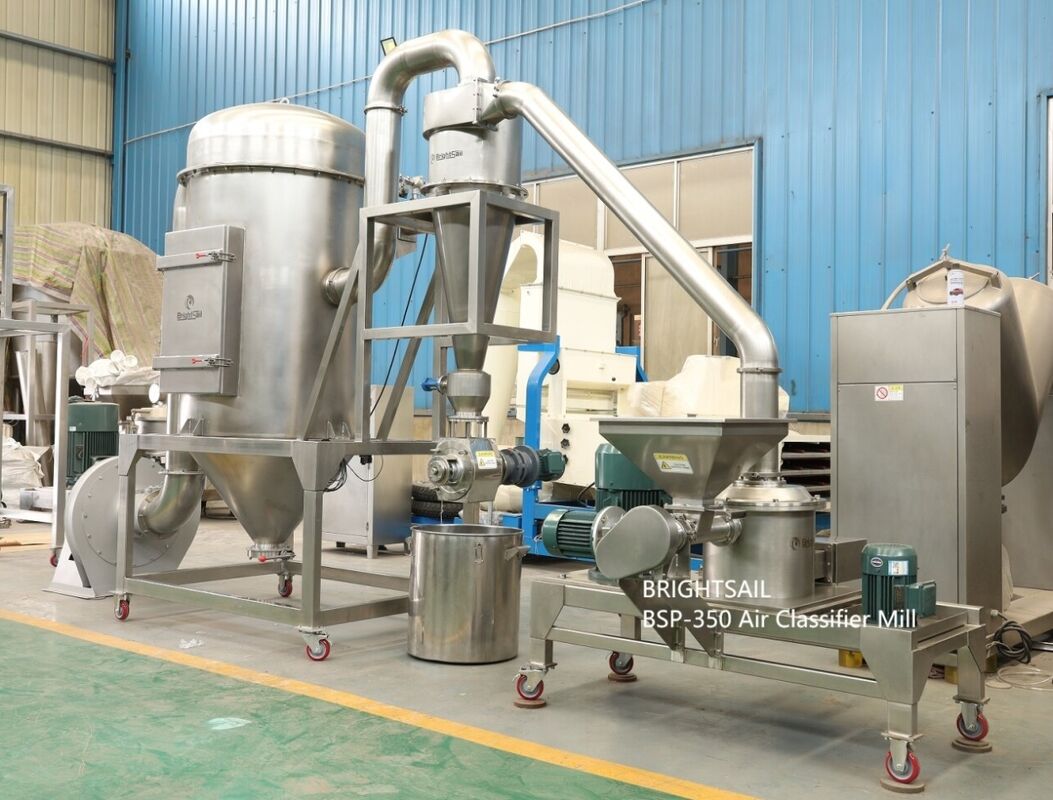

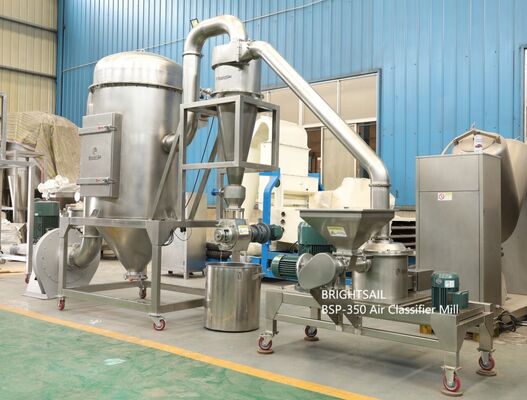

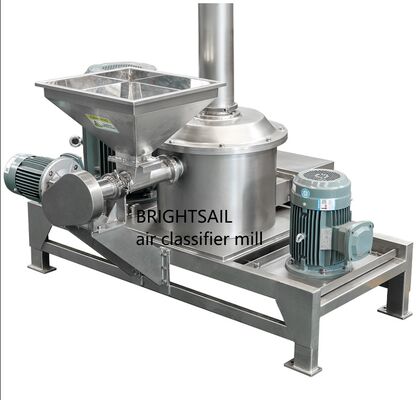

Bark Powder Machine Multifunction Albizia bark Pulverizer Mill
Technical data:
| Model | BSP-350 | BSP-450 | BSP-500 | BSP-750 |
| Input size(mm) | <15 | <15 | <15 | <15 |
| Fineness(mesh) | 30-2500 | 30-2500 | 30-2500 | 30-2500 |
| Capacity(kg/h) | 20-200 | 40-500 | 60-800 | 120-1800 |
| Crush motor(kw) | 11 | 18.5 | 30 | 55 |
| Grade motot(kw) | 1.5 | 4 | 5.5 | 11 |
| Blower(kw) | 7.5 | 11 | 18.5 | 37 |
| Feed motor(kw) | 0.55 | 0.55 | 0.75 | 1.5 |
| Discharge motor(kw) | 0.75 | 0.75 | 1.1 | 1.5 |
| Speed of principle axia(rpm) | ~6500 | ~5350 | ~4600 | ~3100 |
| Grading impeller speed(rpm) | 4000 | 4000 | 3500 | 3000 |
| Weight(kg) | 1600 | 1800 | 2300 | 3100 |
Working method:
Main features:
1.Screenless Design & No Blockage: The innovative air classifier mill design avoids screen blockage, ensuring stable continuous production and higher efficiency.
2.Superior Ultra-fine Grinding: Can produce ultra-fine powder up to 2500 mesh, exceeding conventional hammer mills, ideal for high-value bark powder applications.

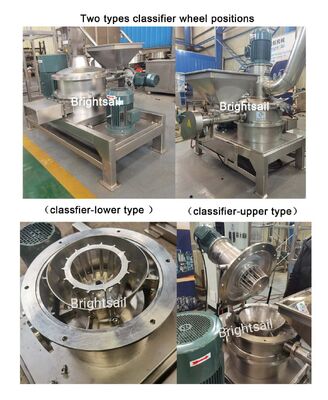

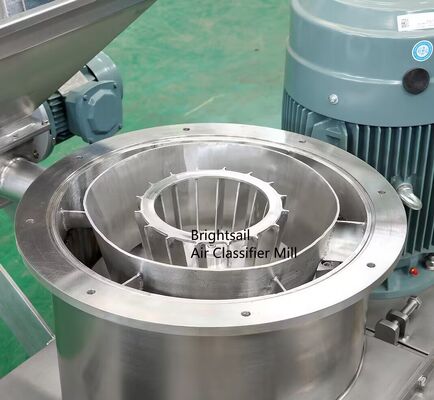

3.Precise Fineness Control: Adjust the classifier wheel speed to easily control product fineness (30-2500 mesh) and meet diverse needs.
Detailed image:
Q: What is the warranty term?
A: Guarantee against defects in materials and workmanship of equipment and parts for one year. Any parts in need of replacement will be shipped free of charge but labor for installation will not be included. Warranty does not cover abuse or user error and quick-wear parts.
Q: What is the material of the machine?
A: Stainless steel 304 is our standard material.
Sometimes,we also use SS316 as customer requests.
Q: Does the machine have GMP certificate?
A: Our machine can meet the requirements of GMP, but our machine is not food or pharmaceutical products, our machine doesn’t have GMP certificate.
But our machine can be applied in food and pharmaceutical’s production
